產品概述
不銹鋼截止閥是上海泰通閥門截止閥系列產品，適用于工業管路系統的介質控制。
主要技術參數
主要技術參數
| 型號 | 公稱壓力 | 試驗壓力 | 工作溫度(℃) | 適用介質 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 強度(水)(Mpa) | 密封(水)空氣(Mpa) | 低壓密封空氣(Mpa) | |||||||||||||||
| J41W6P(R) | 1.6 | 2.4 | 1.8 | 0.6 | ≤200 | NITRIC ACID | |||||||||||
| J41W-25P(R) | 2.5 | 3.8 | 2.8 | 0.6 | ≤200 | 硝酸類 | |||||||||||
| ACETIC ACID | |||||||||||||||||
| 醋酸類 | |||||||||||||||||
| NITRIV ACID | |||||||||||||||||
| 硝酸類 | |||||||||||||||||
| J41W-40P(R) | 4.0 | 6.0 | 4.4 | 0.6 | ≤200 | ACETIC ACID | |||||||||||
| J41W-64P(R) | 6.4 | 9.6 | 7.0 | 0.6 | ≤200 | 醋酸類 | |||||||||||
| 零件名稱 | ZG1Cr18Ni9Ti | ZG00Cr18Ni10 | ZG1Cr18Ni12Mo 2 Ti | ZG00Cr17Ni14Mo 2 | WCB | ||||||||||||
| 閥體/閥蓋 | ZG1Cr18Ni9Ti | ZG00Cr18Ni10 | ZG1Cr18Ni12Mo 2 Ti | ZG00Cr17Ni14Mo 2 | WCB | ||||||||||||
| 閥瓣 | ZG1Cr18Ni9Ti | ZG00Cr18Ni10 | ZG1Cr18Ni12Mo 2 Ti | ZG00Cr17Ni14Mo 2 | 1Cr13 | ||||||||||||
| 閥桿 | ZG1Cr18Ni9Ti | 00Cr18Ni10 | 1Cr18Ni12Mo 2 Ti | 00Cr17Ni14Mo 2 | 1Cr13 | ||||||||||||
| 填料 | PTFE編織 | PTFE編織 | PTFE編織 | PTFE編織 | 石墨 | ||||||||||||
| 墊片 | 304+PTFE | 304L+PTFE | 316+PTFE | 316L+PTFE | 石墨+304 | ||||||||||||
| 壓蓋 | ZG1Cr18Ni9Ti | ZG00Cr18Ni10 | ZG1Cr18Ni12Mo 2 Ti | ZG00Cr17Ni14Mo 2 | WCB | ||||||||||||
| 填料壓環 | 1Cr18Ni9Ti | 00Cr18Ni10 | 1Cr18Ni12Mo 2 Ti | 00Cr17Ni14Mo 2 | 1Cr13 | ||||||||||||
| 螺栓 | 1Cr17Ni2 | 1Cr17Ni2 | 1Cr17Ni2 | 1Cr17Ni2 | 35CrMoA | ||||||||||||
| 螺母 | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 45 | ||||||||||||
| 尺寸 | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| L | mm | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 650 | 750 | 850 | 950 |
| H | mm | 200 | 243 | 253 | 280 | 312 | 321 | 325 | 355 | 415 | 460 | 510 | 700 | 975 | 1115 | 1250 | 1380 |
| W | mm | 120 | 140 | 160 | 160 | 200 | 200 | 240 | 240 | 280 | 320 | 360 | 560 | 600 | 700 | 800 | 900 |
| 重量 | kg | 5 | 6.5 | 7 | 13.5 | 16 | 32 | 45 | 60 | 80 | 107 | 134 | 268 | 449 | 663 | 750 | 1170 |
| 尺寸 | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| L | mm | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 650 | 750 | 850 | 950 |
| H | mm | 200 | 243 | 253 | 280 | 312 | 321 | 325 | 355 | 415 | 460 | 510 | 700 | 975 | 1115 | 1250 | 1380 |
| W | mm | 120 | 140 | 160 | 160 | 200 | 200 | 240 | 240 | 280 | 320 | 360 | 560 | 600 | 700 | 800 | 900 |
| 重量 | kg | 5 | 6.5 | 7 | 13.5 | 16 | 32 | 45 | 60 | 80 | 107 | 134 | 268 | 449 | 663 | 750 | 1170 |
| 尺寸 | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| L | mm | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 650 | 750 | 850 | 950 |
| H | mm | 200 | 243 | 253 | 280 | 312 | 321 | 325 | 355 | 415 | 460 | 510 | 700 | 975 | 1115 | 1250 | 1380 |
| W | mm | 120 | 140 | 160 | 160 | 200 | 200 | 240 | 240 | 280 | 320 | 360 | 560 | 600 | 700 | 800 | 900 |
| 重量 | kg | 5 | 6.5 | 7 | 13.5 | 16 | 32 | 45 | 60 | 80 | 107 | 134 | 268 | 491 | 705 | 850 | 1234 |
| 尺寸 | DN | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | ||||||
| L | mm | 170 | 190 | 210 | 230 | 260 | 300 | 340 | 380 | 430 | 550 | ||||||
| H | mm | 195 | 228 | 250 | 325 | 360 | 410 | 450 | 485 | 537 | 646 | ||||||
| W | mm | 140 | 160 | 180 | 200 | 240 | 280 | 320 | 360 | 400 | 450 | ||||||
| 重量 | kg | 10 | 13 | 15 | 19 | 25 | 35 | 48 | 56 | 125 | 157 | ||||||
| 尺寸 | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | ||
| L | mm | 170 | 190 | 210 | 230 | 260 | 300 | 340 | 380 | 430 | 500 | 550 | 650 | 775 | 900 | ||
| H | mm | 195 | 228 | 250 | 325 | 360 | 410 | 450 | 485 | 537 | 840 | 925 | 1015 | 1200 | |||
| W | mm | 100 | 100 | 120 | 160 | 160 | 180 | 200 | 200 | 240 | - | - | - | - | - | ||
| 重量 | kg | 10 | 12 | 17 | 25 | 30 | 40 | 68 | 92 | 107 | - | 310 | 590 | 850 | 1040 |
主要零部件材料
主要零部件材料
| 零件名稱 | ZG1Cr18Ni9Ti | ZG00Cr18Ni10 | ZG1Cr18Ni12Mo 2 Ti | ZG00Cr17Ni14Mo 2 | WCB |
|---|---|---|---|---|---|
| 閥體/閥蓋 | ZG1Cr18Ni9Ti | ZG00Cr18Ni10 | ZG1Cr18Ni12Mo 2 Ti | ZG00Cr17Ni14Mo 2 | WCB |
| 閥瓣 | ZG1Cr18Ni9Ti | ZG00Cr18Ni10 | ZG1Cr18Ni12Mo 2 Ti | ZG00Cr17Ni14Mo 2 | 1Cr13 |
| 閥桿 | ZG1Cr18Ni9Ti | 00Cr18Ni10 | 1Cr18Ni12Mo 2 Ti | 00Cr17Ni14Mo 2 | 1Cr13 |
| 填料 | PTFE編織 | PTFE編織 | PTFE編織 | PTFE編織 | 石墨 |
| 墊片 | 304+PTFE | 304L+PTFE | 316+PTFE | 316L+PTFE | 石墨+304 |
| 壓蓋 | ZG1Cr18Ni9Ti | ZG00Cr18Ni10 | ZG1Cr18Ni12Mo 2 Ti | ZG00Cr17Ni14Mo 2 | WCB |
| 填料壓環 | 1Cr18Ni9Ti | 00Cr18Ni10 | 1Cr18Ni12Mo 2 Ti | 00Cr17Ni14Mo 2 | 1Cr13 |
| 螺栓 | 1Cr17Ni2 | 1Cr17Ni2 | 1Cr17Ni2 | 1Cr17Ni2 | 35CrMoA |
| 螺母 | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 45 |
適用介質
硝酸
執行標準
GB12235GB13927GB12221

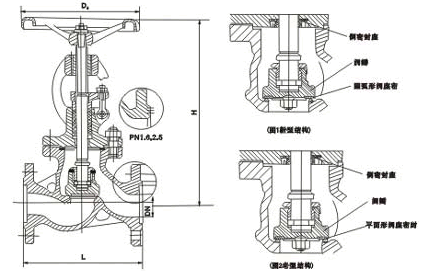

結構圖與尺寸圖
結構圖 / 尺寸圖
